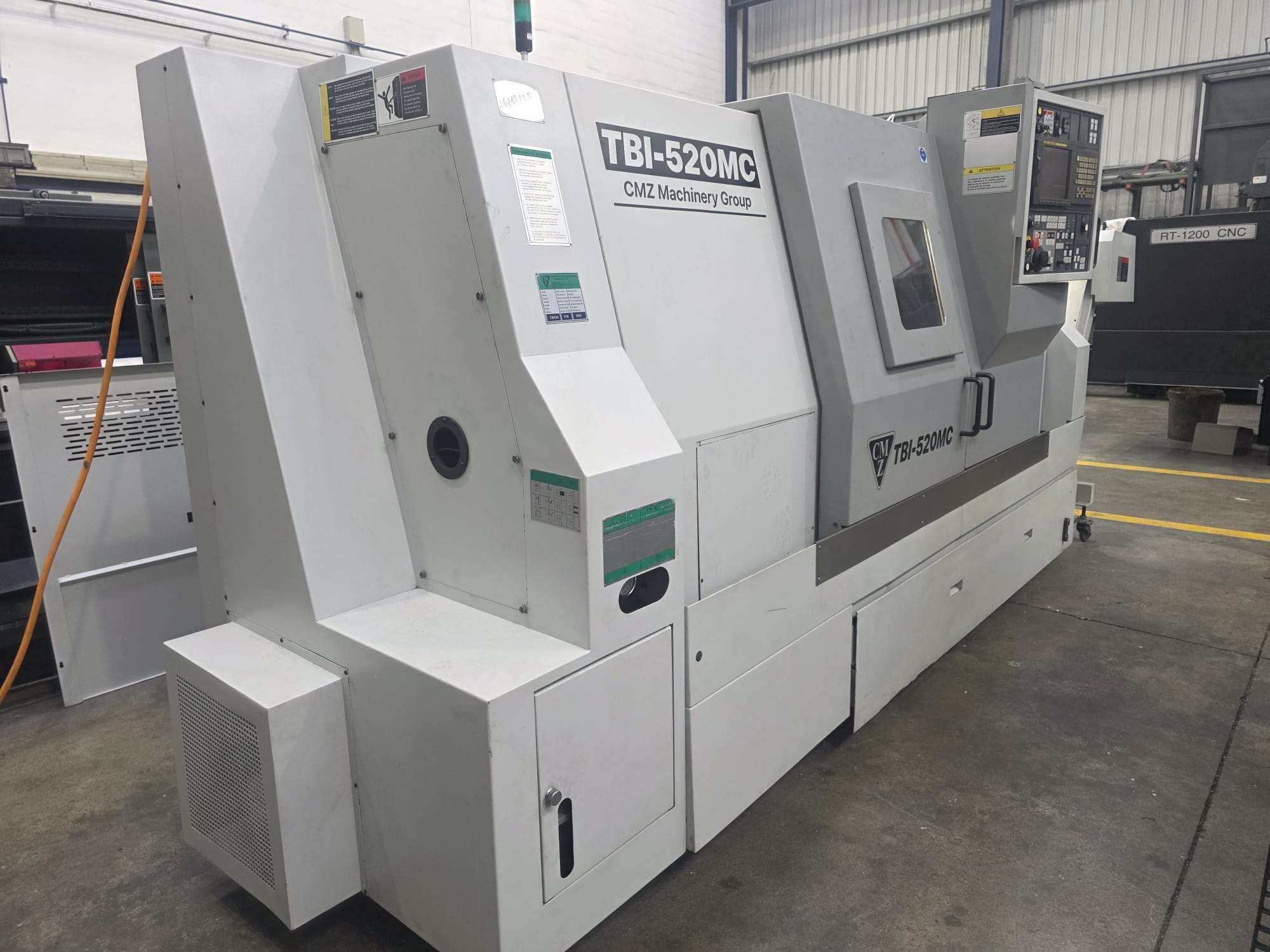

Brand : CMZ
Model : TBI 520 MC
Cnc : FANUC 18i-TB with Manual guide
Yom : 2005
Times operation: 1371h
Distance between centres: 1.100 mm
Swing over bed: 520 mm
Ø Max. Turning: 420 mm
X Travel X : 296 mm
Z Travel : 1090 mm
Rapid Feeds (X, Z Axis): 18 m/min
Rapid Feeds (Z Axis): 24 m/min
Max Speed of the Head: 3000 rpm
Spindle Bar Diameter: 82 mm
Chuck Bore Ø: 95 mm
Spindle Max. Power : 22 kw

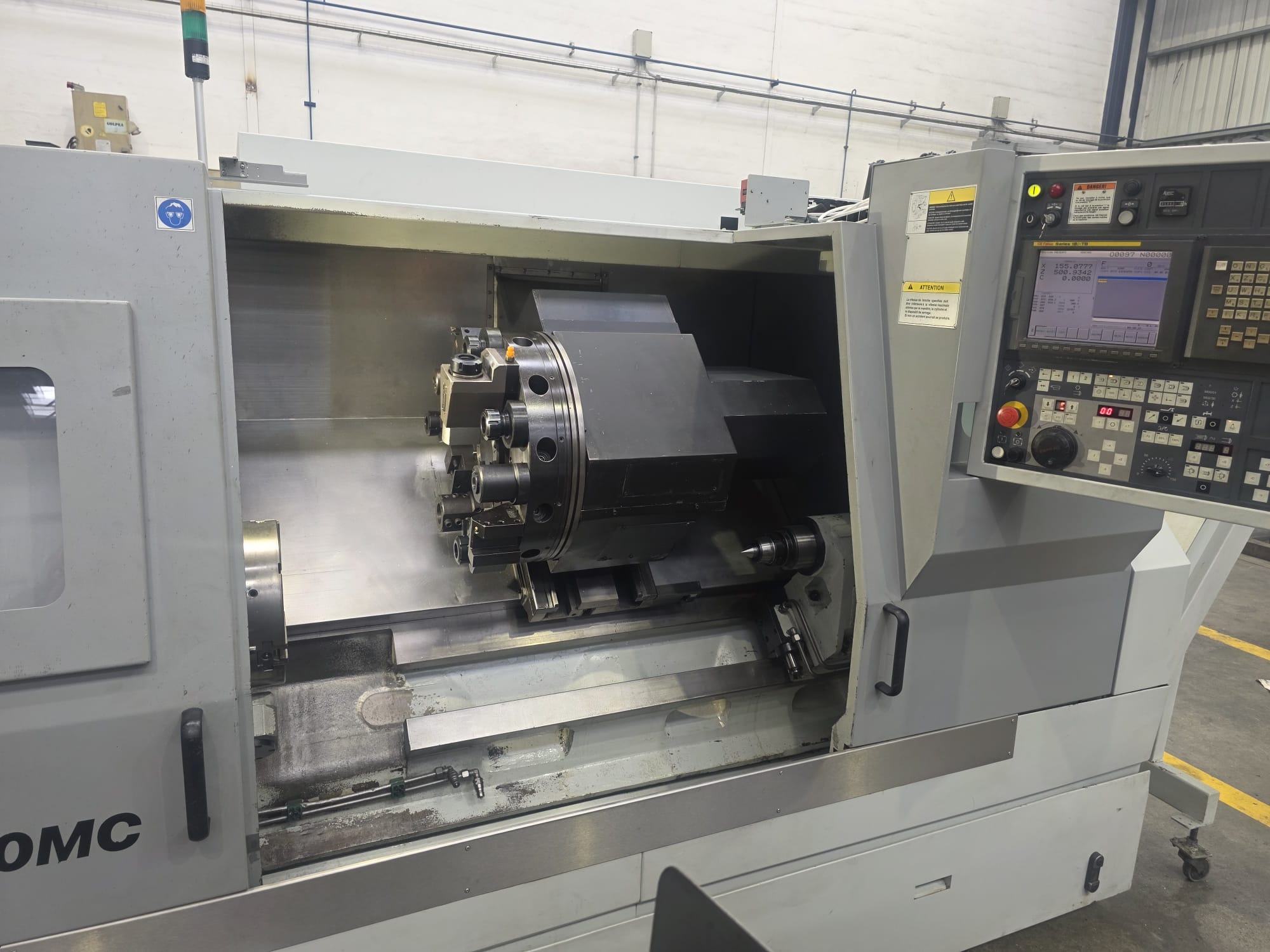

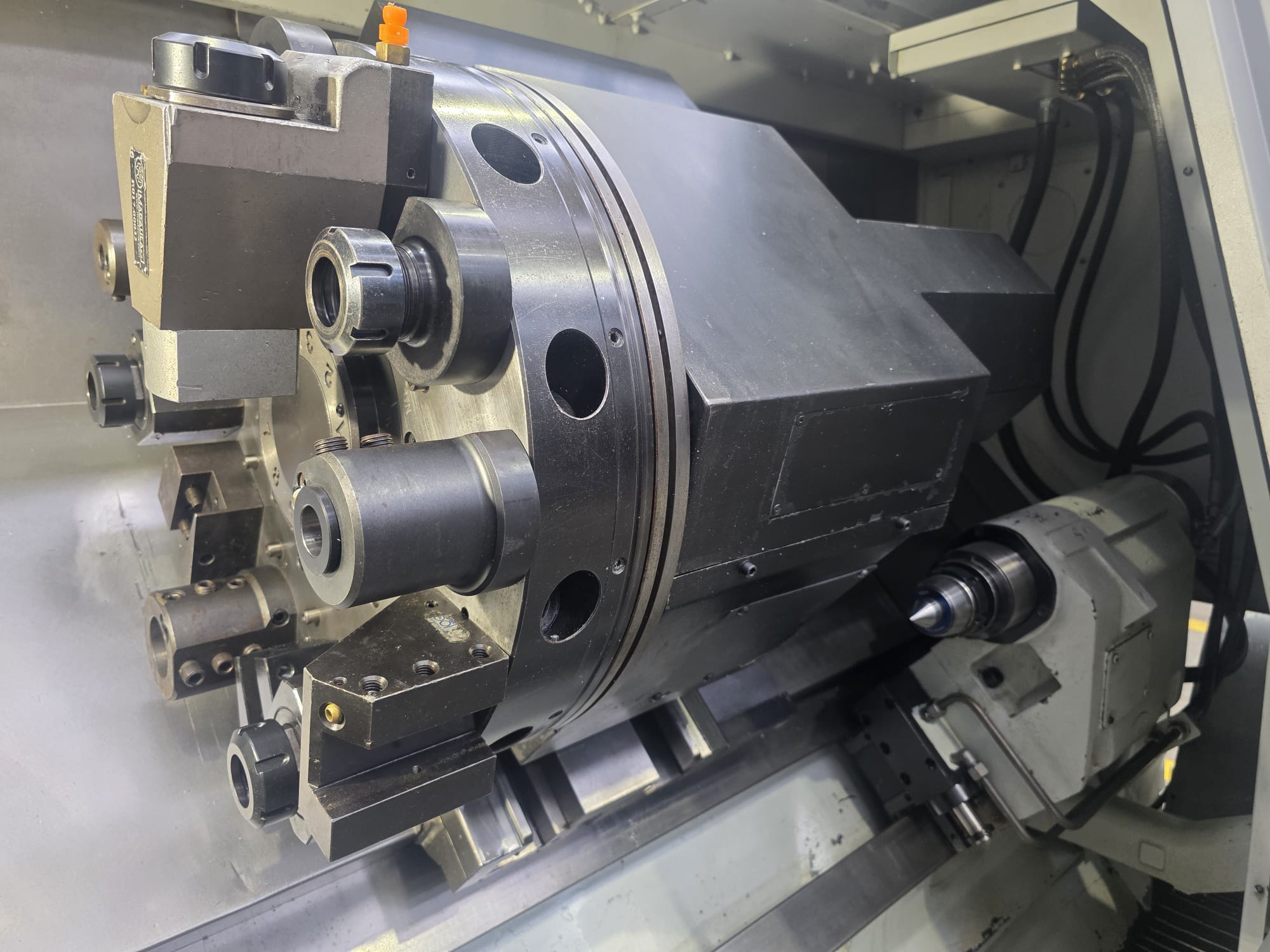

Number turret positions; 12 (VDI-50)
Number positions of Driven tools 12
Driven Tools Speed 4000 rpm
Max Power Driven Tools 8,5 kw
C Axis and Driven Tools INCLUDED
Hydraulic Steady Rest installation: INCLUDED
Tool Presetter INCLUDED
2 Axial Driven Tool Holders INCLUDED
2 Radial Driven Tool Holders INCLUDED
Installed Power 50 KVA
Equipped with chip conveyor
